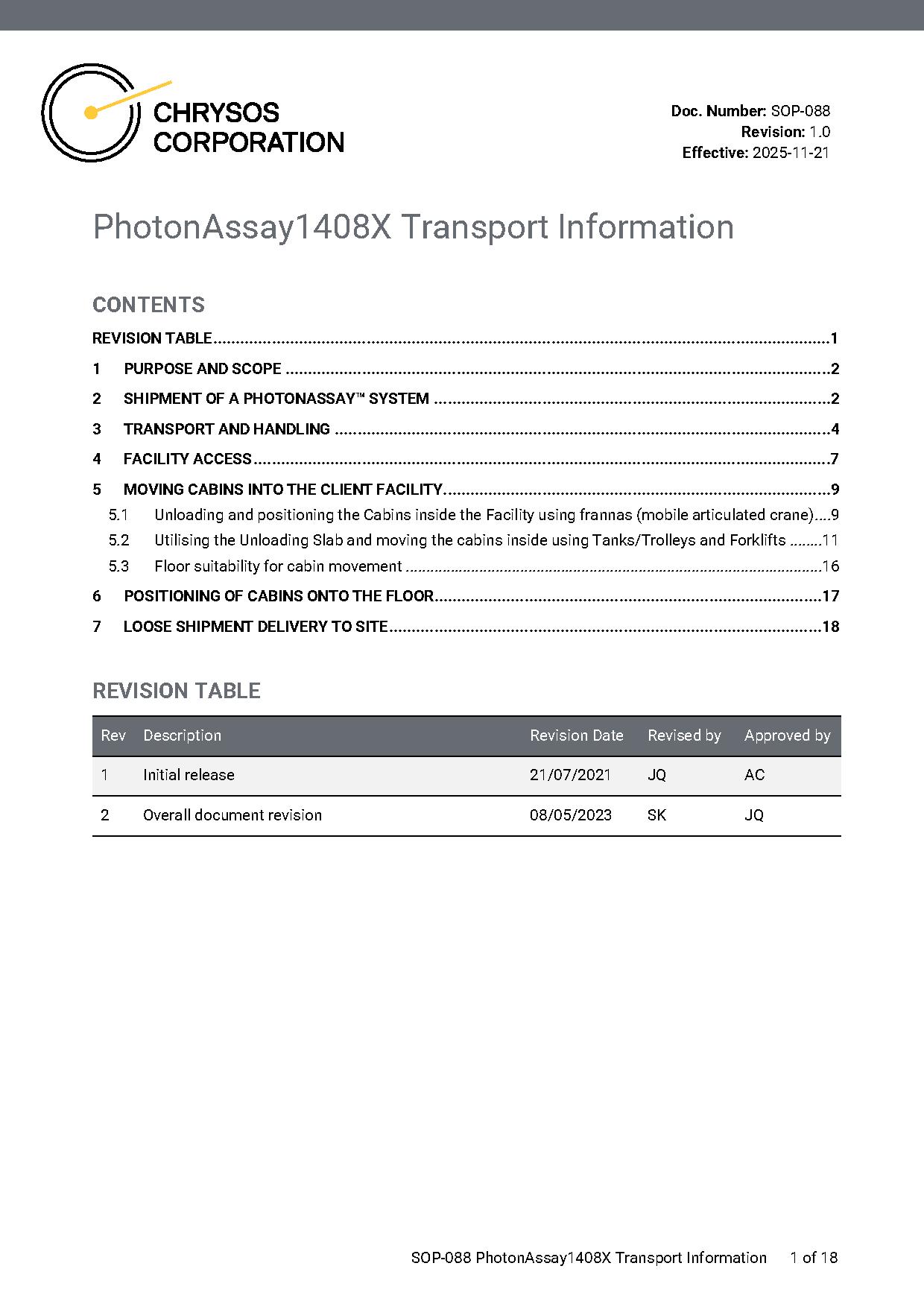

PhotonAssay1408X Transport Information
Everything you need to know about safely shipping, moving, and positioning a PhotonAssay™ 1408X system — from port to final installation.
Download the full document
PDF · 18 pages · 7MB
Fill in a quick form to access the full document.
What this note covers

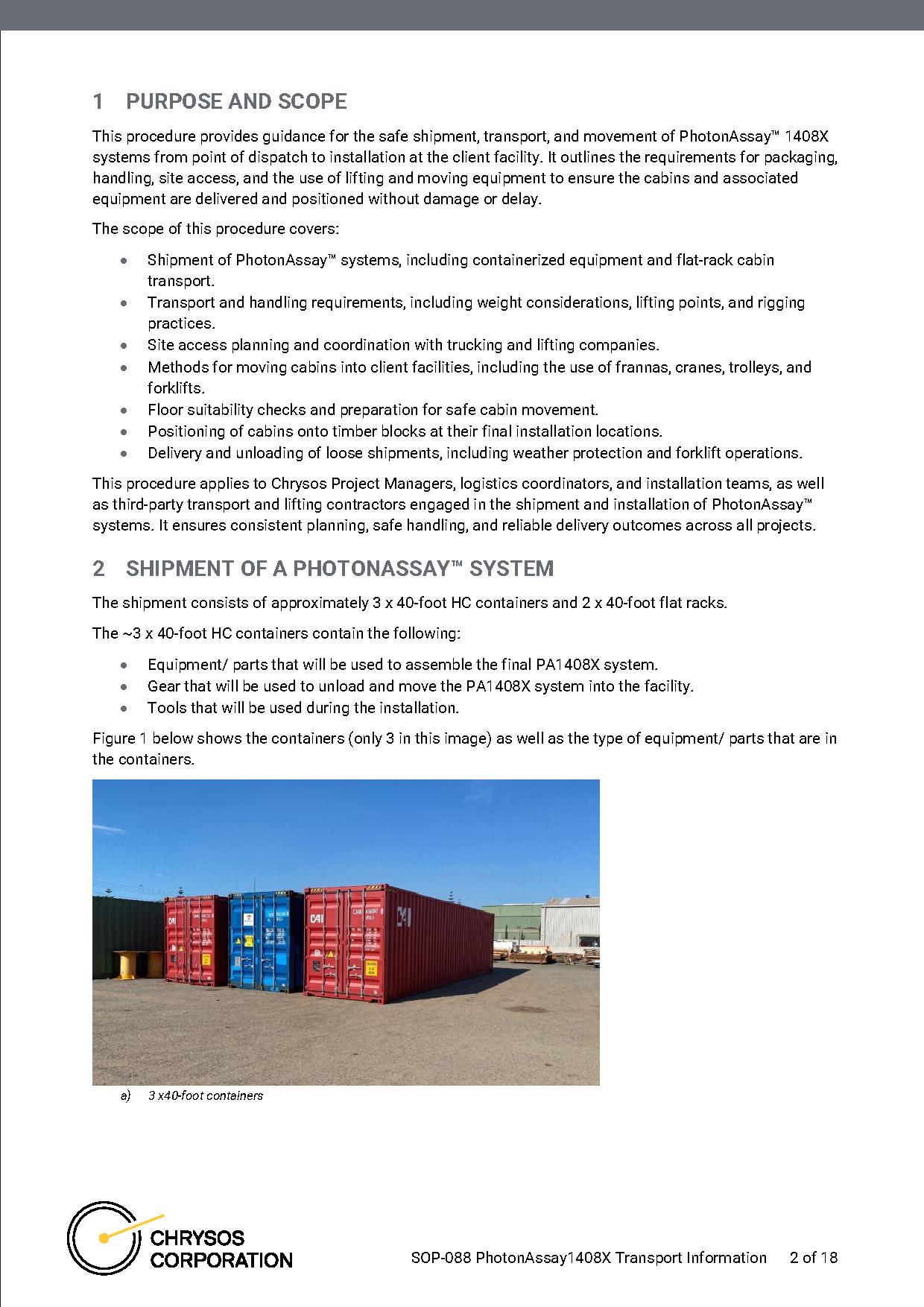

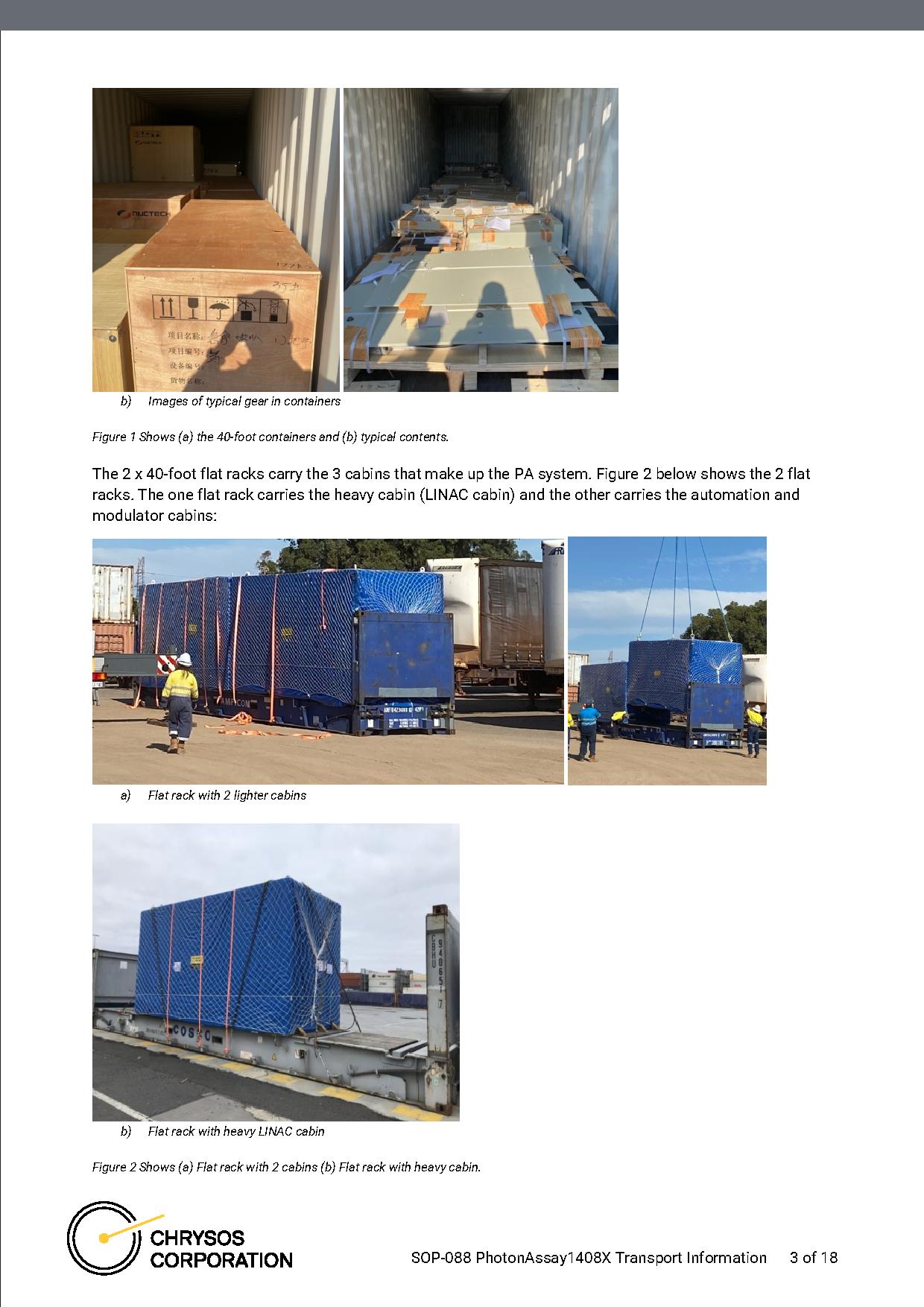

Shipment configuration — approximately 3 x 40-foot HC containers plus 2 x 40-foot flat racks carrying the three PhotonAssay™ 1408X cabins
Cabin weights and crane rigging requirements, including the LINAC cabin’s off-centre centre of gravity (~30 tonnes)
Site access planning — access routes, door clearances, and positioning of trucks, cranes, and frannas
Two methods for moving cabins into a facility: direct internal unloading via franna, or external unloading onto Chrysos-supplied trolleys
Cabin positioning onto timber blocks and loose shipment delivery and unloading procedures
