PhotonAssay™ 1408X System – Installation & Site Requirements Guide
Detailed system drawings for those who want to see exactly how PhotonAssay™ is configured.
Download the full document
PDF · 5 pages · 737KB
Fill in a quick form to access the full document.
What this note covers

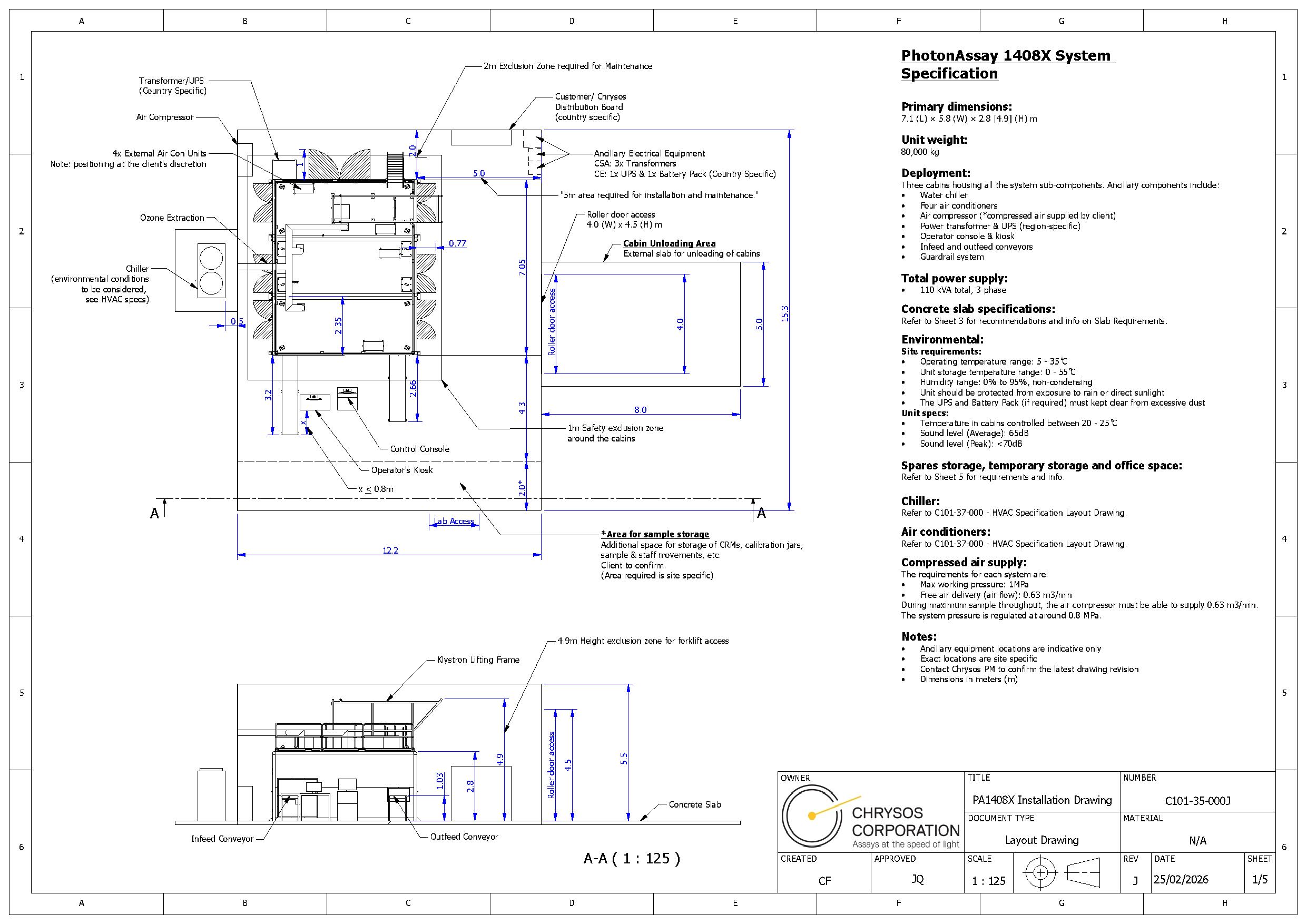

Primary dimensions, unit weight (80,000 kg), and three-cabin deployment configuration for the PhotonAssay™ 1408X system

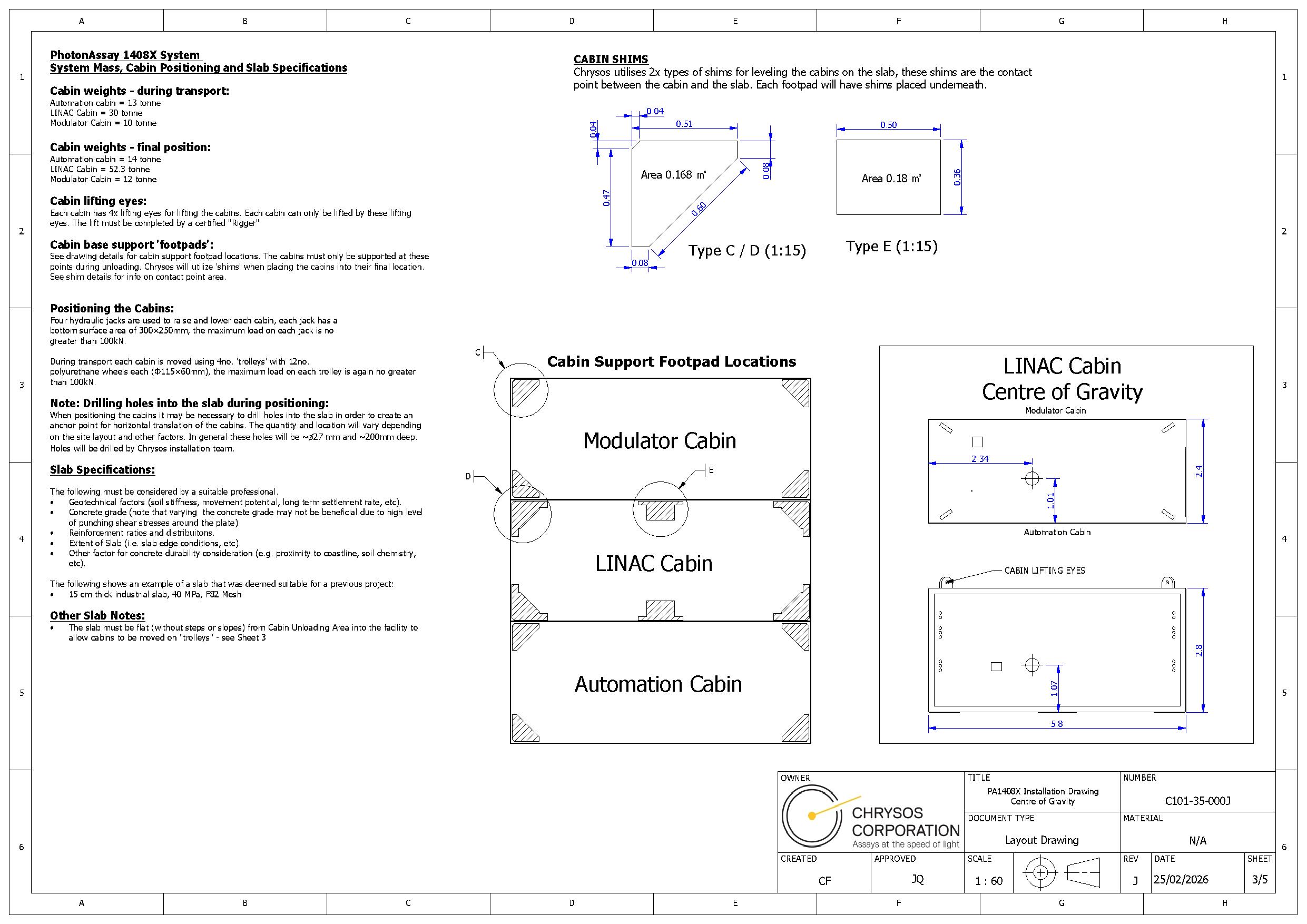

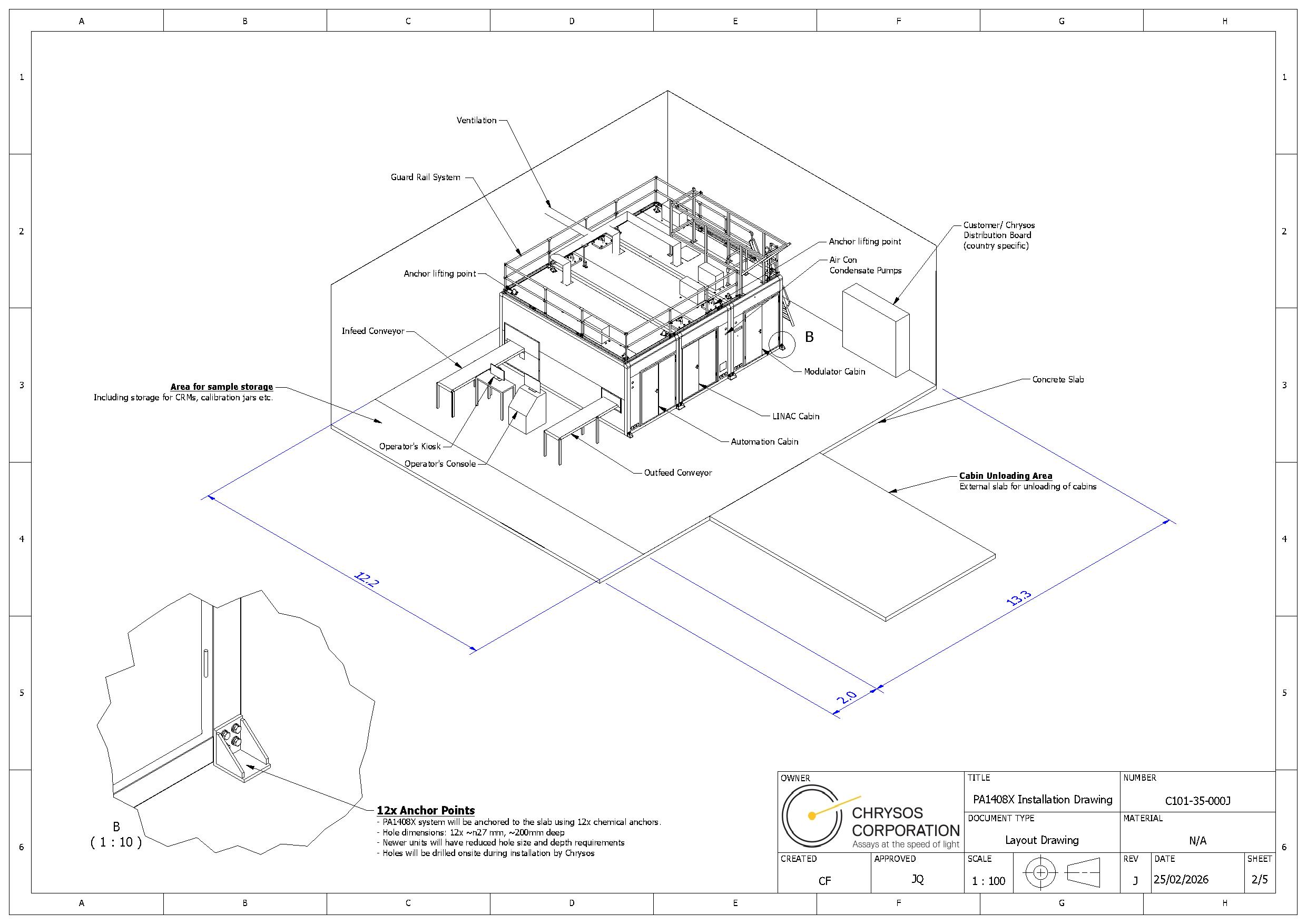

Concrete slab specifications, cabin positioning, and anchor point requirements
Power supply (110 kVA, 3-phase), environmental operating ranges, and compressed air requirements
Ventilation, exhaust point layout, and HVAC references
Spares storage, temporary storage, and on-site office space requirements
